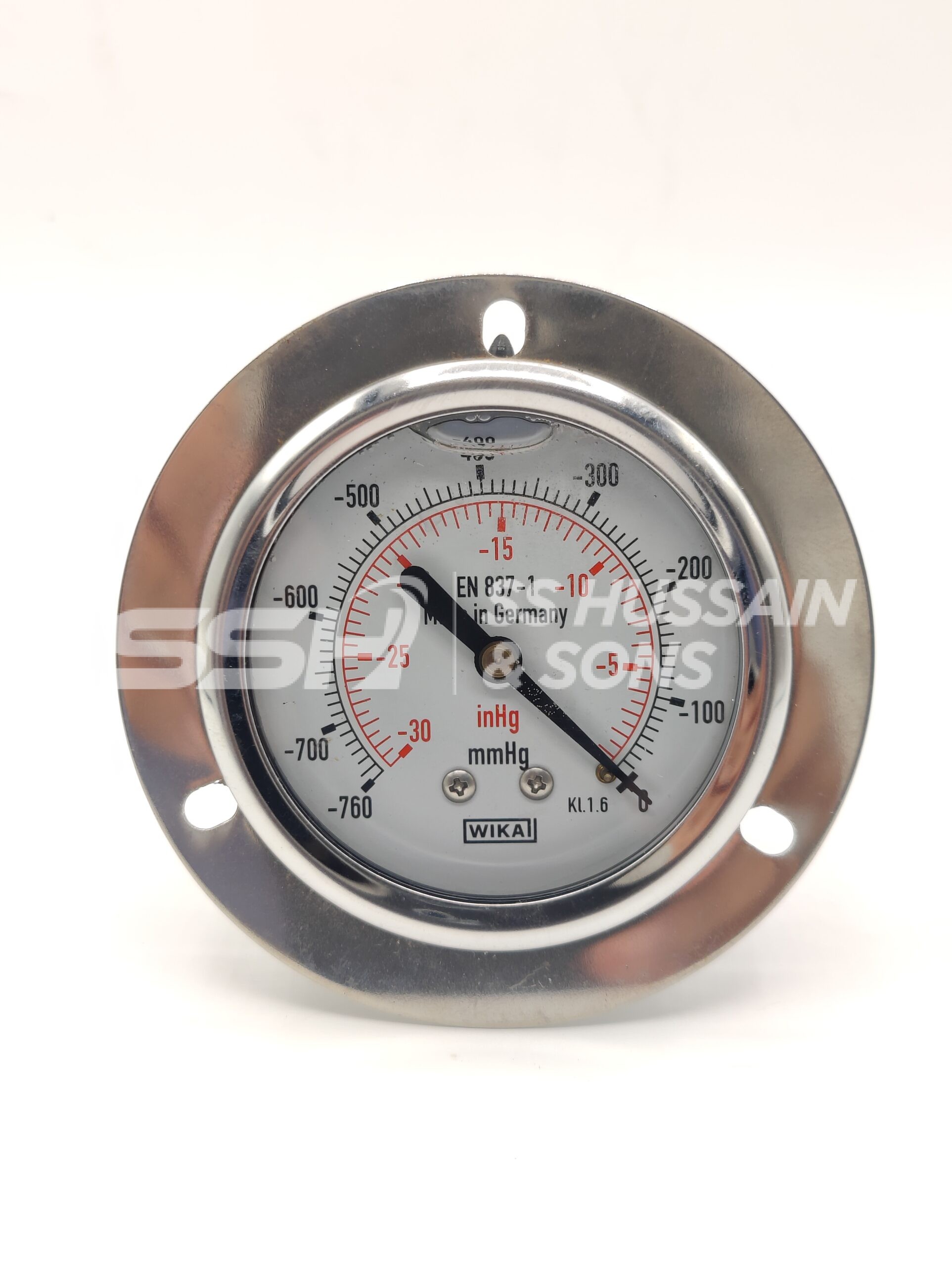

2.5 INCH BACK CONNECTION General Purpose Pressure Gauge –WIKA
₨ 2,200
The WIKA 2.5 Inch (63 mm) Back Connection General Purpose Pressure Gauge is a reliable and cost-effective mechanical instrument designed for a wide array of industrial and commercial applications. Featuring a rear-entry connection, this gauge is ideal for installations where the gauge face needs to be flush-mounted on a control panel, equipment, or in systems where space behind the gauge is limited.
Key Features and Benefits
-
Compact Nominal Size: The 2.5-inch (63 mm) diameter is a popular and space-saving size, perfect for panel mounting and use on smaller machinery.
-

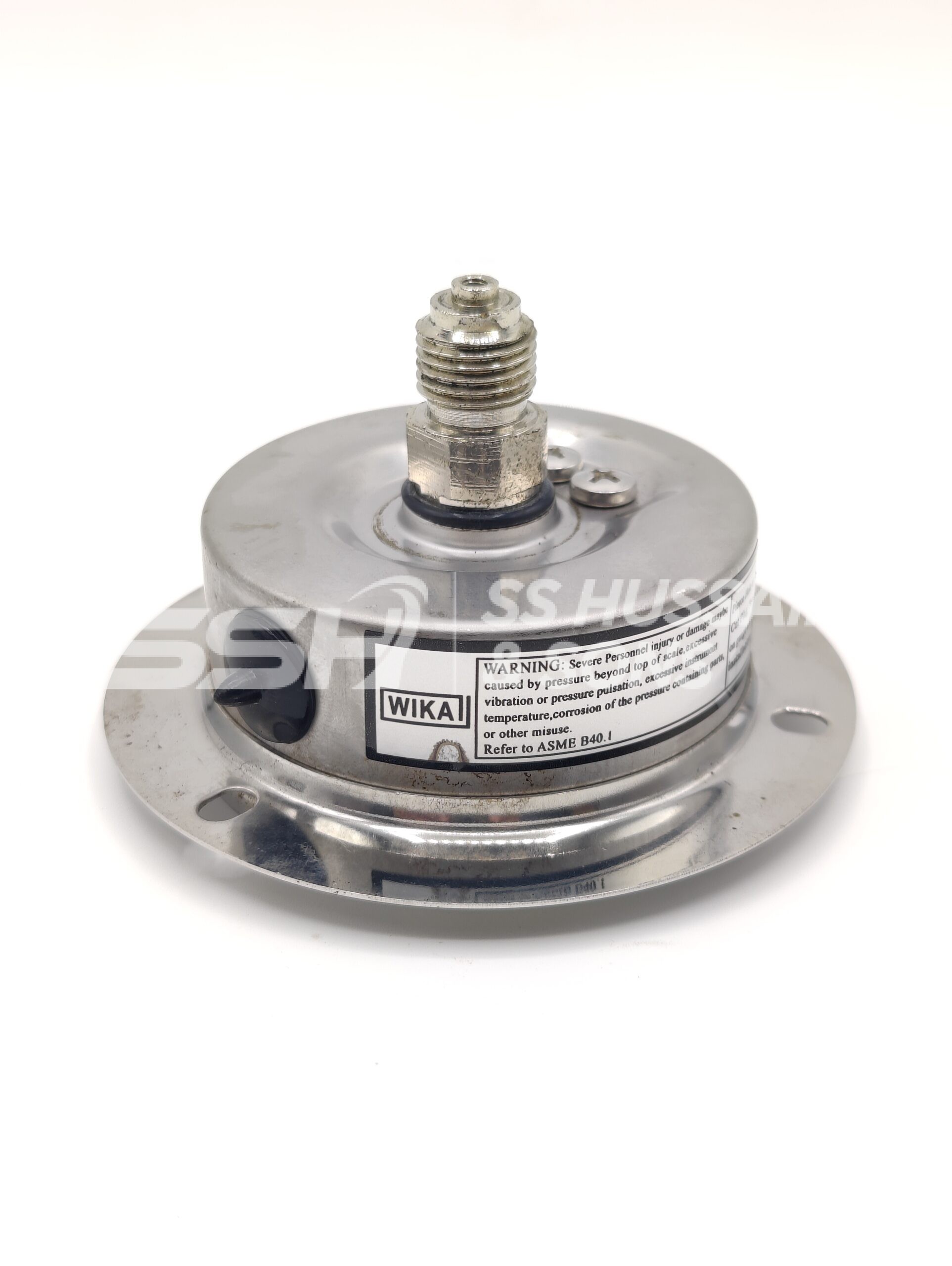

Back Connection Design: The connection port is located directly on the back of the case, allowing for “center back mount” installation. This provides a neat, flush appearance, especially in panel-mounted applications.
-
General Purpose Reliability: Suitable for measuring pressure in systems involving air, water, oil, and non-corrosive gases. Common applications include compressors, hydraulic and pneumatic equipment, HVAC systems, and pump monitoring.
-
WIKA Quality: Manufactured by WIKA, a global leader in pressure and temperature measurement, ensuring reliable German quality and precision.
Description
Technical Specifications
| Feature | Specification |
| Dial Size | 2.5 inch (63 mm) |
| Connection Type | Center Back Mount (CBM) |
| Process Connection | 1/4″ NPT (Standard) |
| Case Material | 304 Stainless Steel |
| Wetted Parts (Internals) | Copper Alloy (Brass) |
| Window Material | Crystal-clear Snap-in Polycarbonate |
| Accuracy Class | ±3/2/3% of span (ASME B40.100 Grade B) |
| Permissible Temp | Ambient: -40°F to +140°F; Medium: +140°F max |
Additional information
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150 BAR, 16 BAR, 2.5 BAR, 200 PSI / 14 bar, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM – 760mmhg |
|---|
