2.5 INCH Bottom CONNECTION General Purpose Pressure Gauge –WIKA
₨ 2,000

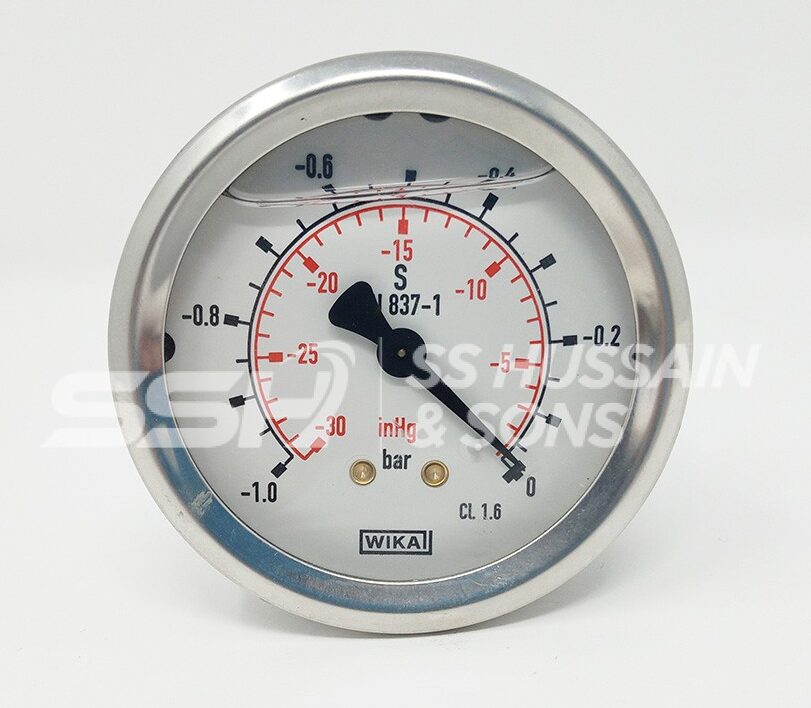

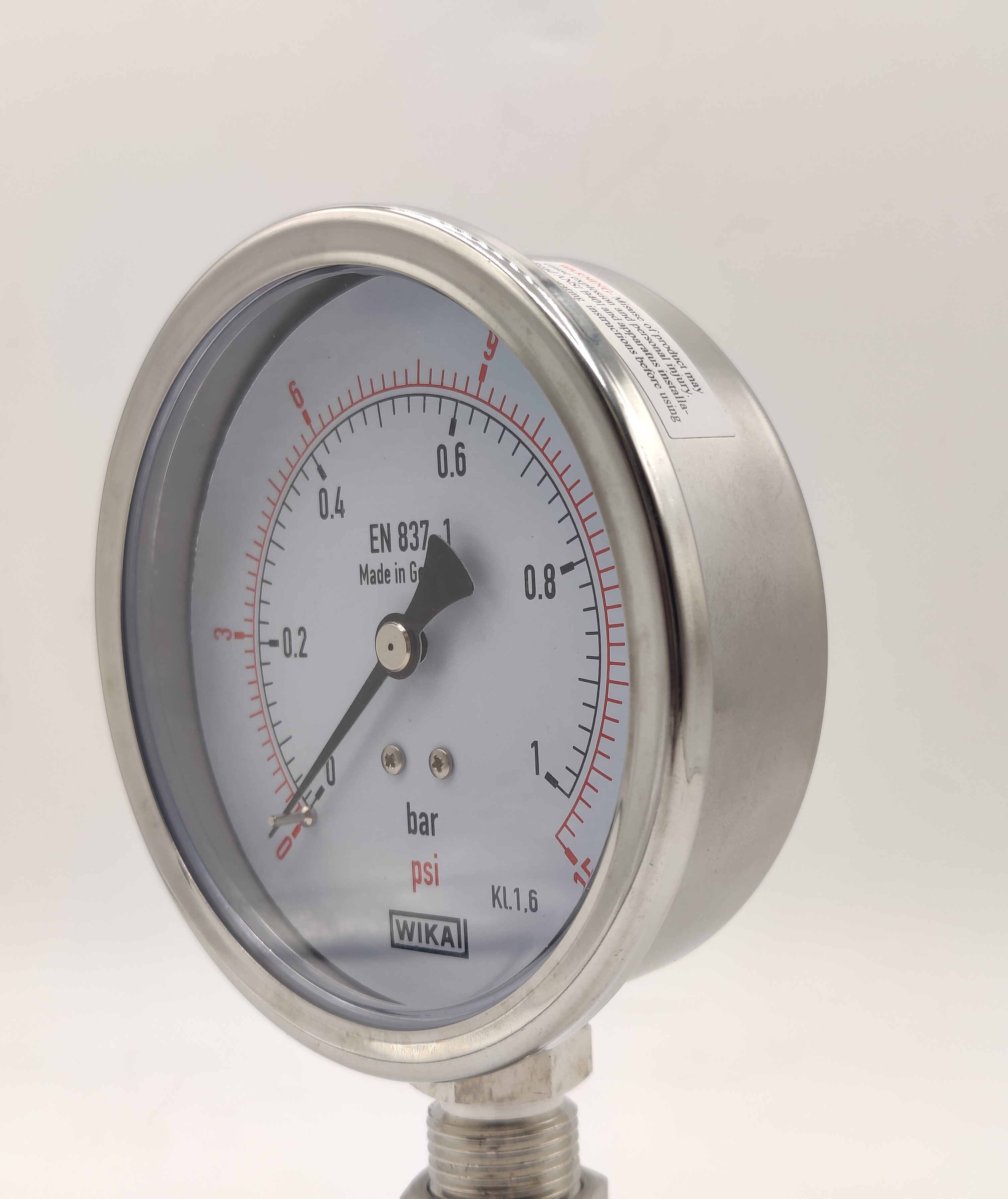

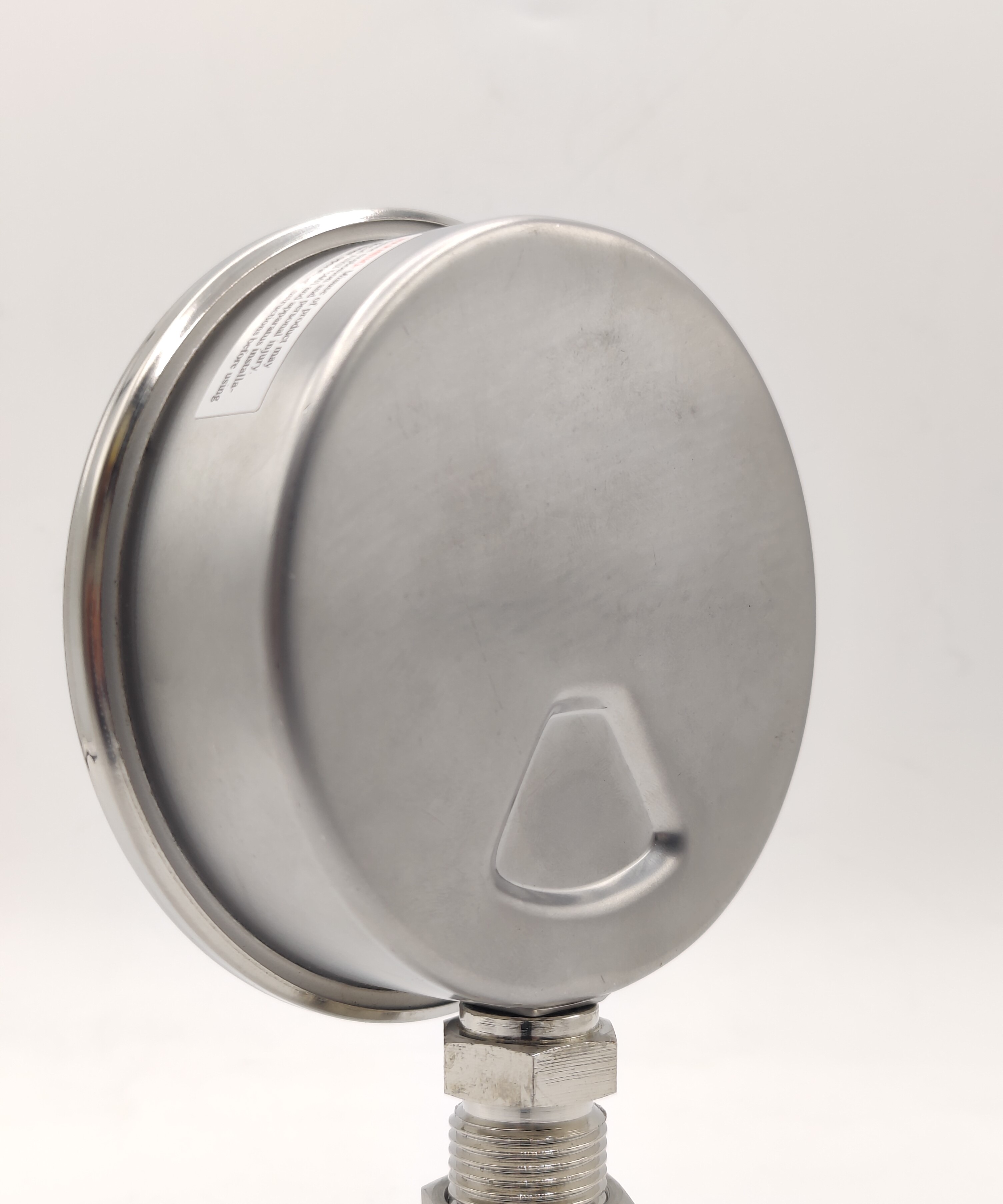

The WIKA 2.5-inch (63 mm) General-Purpose Pressure Gauge is a reliable and accurate solution for measuring pressure in a wide range of industrial and commercial applications. Designed with durability and ease of use in mind,making it ideal for mounting directly onto pipelines, pumps, compressors, and machinery.
Key Features
-
Dial Size: 2.5″ (63 mm) for easy visibility
-
Connection Type: Bottom-mounted 1/4″ NPT
-
Pressure Ranges: Available in a variety of scales to fit your application
-
Media Compatibility: Suitable for liquids and gases that are non-corrosive to brass or stainless-steel wetted parts
-
Construction: Durable case design for industrial use
-
Accuracy: Ideal for general-purpose pressure monitoring
-
Applications: Pumps, compressors, hydraulics, pneumatics, HVAC, water systems, and general industrial machinery
Description
Technical Specifications
| Feature | Specification |
| Dial Size | 2.5 inch (63 mm) |
| Connection Location | Lower Mount (Bottom) |
| Process Connection | 1/4″ NPT (Brass) |
| Case Material | 304 Stainless Steel (Polished) |
| Wetted Parts | Copper Alloy (Brass/Bronze) |
| Accuracy | ±1.5% of span (ASME B40.100 Grade B) |
| Fill Liquid | Glycerin (Optional) |
| Pressure Ranges | Vacuum up to 15,000 psi |
Additional information
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150 BAR, 16 BAR, 2.5 BAR, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM – 760mmhg |
|---|
