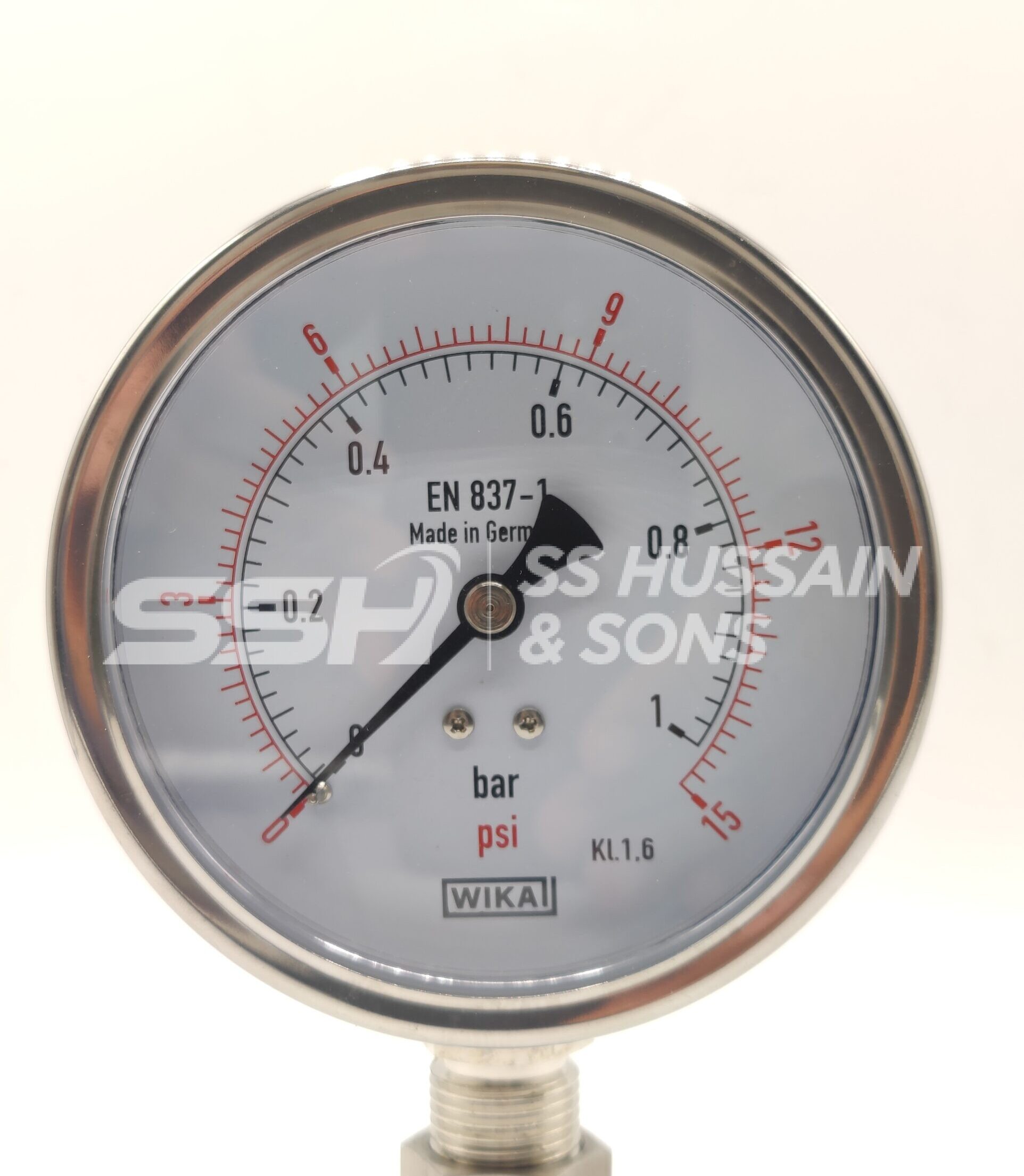

4 INCH Bottom CONNECTION General Purpose Pressure Gauge – WIKA
₨ 3,500
The WIKA 4-Inch General Purpose Pressure Gauge is the versatile “workhorse” of the industrial world. Designed for those who need a larger, more readable display than a standard 2.5-inch gauge but don’t have the space for a massive 6-inch unit, this gauge delivers professional-grade monitoring in a compact footprint.
Featuring a rugged 304 Stainless Steel case paired with reliable Brass internals, it offers a premium aesthetic and external corrosion resistance while remaining cost-effective for general air, water, and oil applications.
Key Features
-
Optimal 4-Inch (100 mm) Dial: Provides a clear, high-resolution scale that is easy to read at a glance, reducing operator error.
-
Hybrid Construction: The stainless steel case protects against harsh ambient conditions, while the brass wetted parts ensure compatibility with non-corrosive media.
-
Standard Bottom Connection: The Lower Mount (LM) design allows for simple, direct installation onto vertical piping and manifolds.
-
WIKA Precision: Built to rigorous standards, offering the “smooth” pointer movement and long-term calibration stability that WIKA is famous for.
Description
Technical Specifications
| Feature | Specification |
| Nominal Size | 4″ (100 mm) |
| Connection Location | Bottom (Lower Mount) |
| Case Material | 304 Stainless Steel |
| Wetted Parts | Copper Alloy / Brass |
| Window | Polycarbonate or Flat Glass |
| Accuracy | ± 1.0% or 1.5% of span (Series dependent) |
| Ingress Protection | IP54 or IP65 (depending on model) |
Additional information
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150 BAR, 16 BAR, 2.5 BAR, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM – 760mmhg |
|---|
