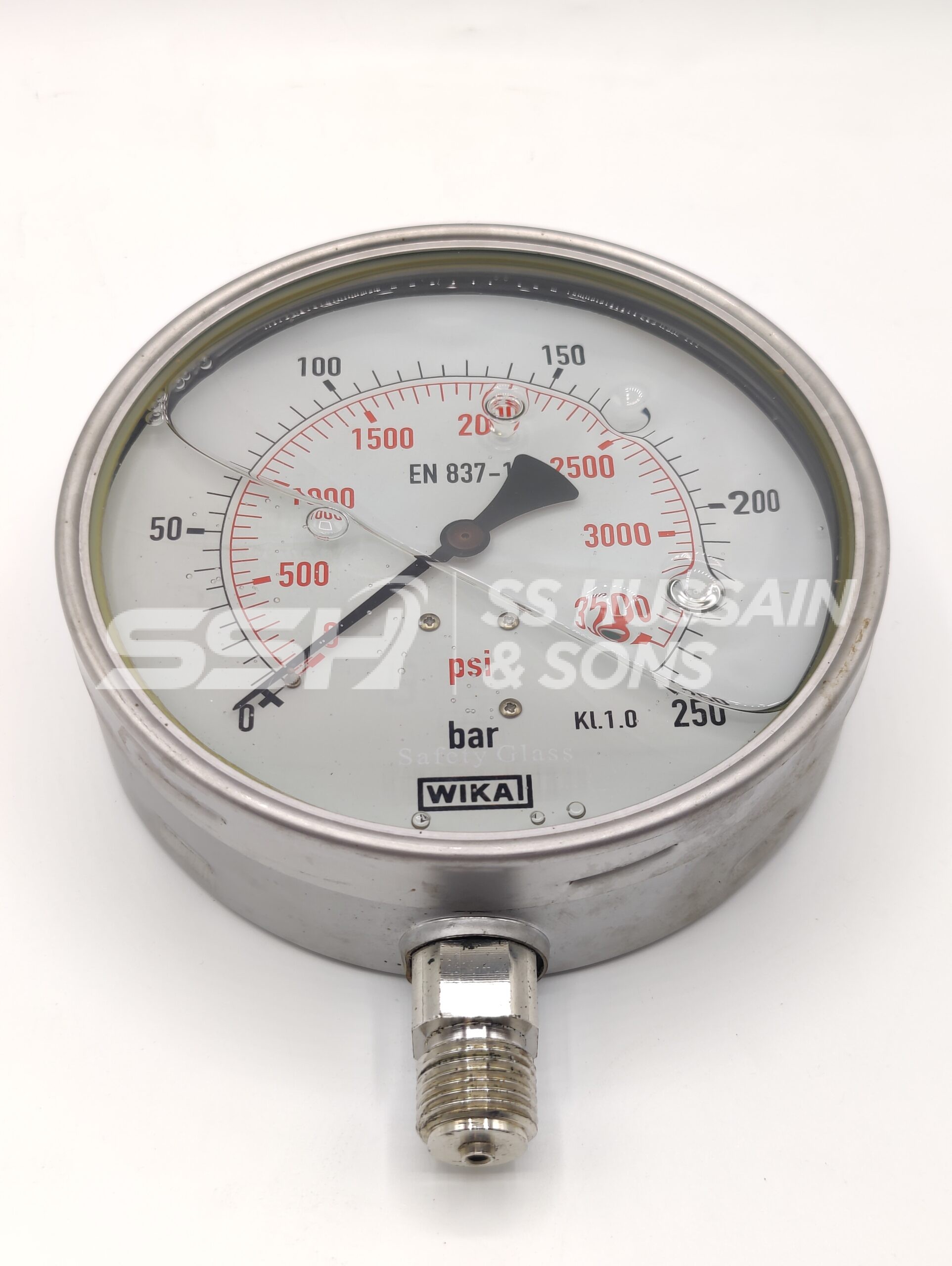

6 INCH Bottom CONNECTION General Purpose Pressure Gauge – WIKA
₨ 7,500
The WIKA 6-Inch General Purpose Pressure Gauge is the industry standard for reliable, cost-effective pressure monitoring in environments where high visibility and durability are paramount. Featuring a large, easy-to-read dial, this gauge is engineered for accuracy in applications involving gaseous or liquid media that do not obstruct the pressure system or attack copper alloy parts.
Key Features
-

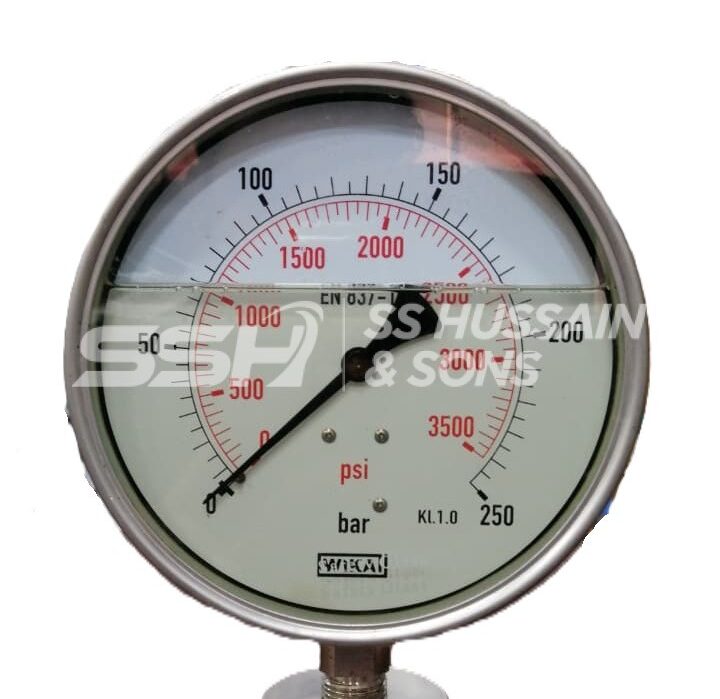

High Visibility: The massive 6-inch (160 mm) dial face ensures that readings can be taken accurately from a distance, making it ideal for large mechanical rooms or industrial plants.
-

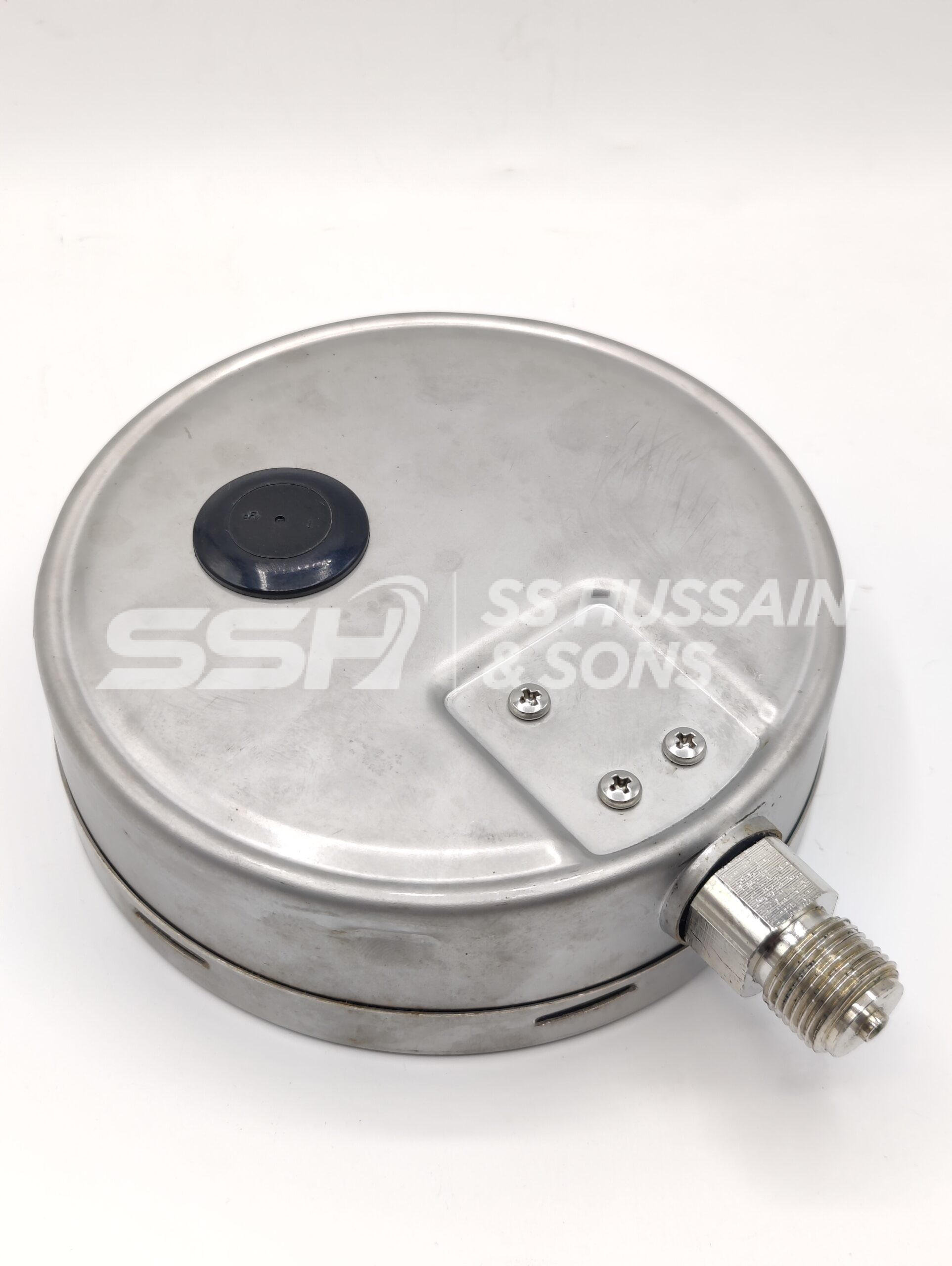

Robust Construction: Built with a rugged stainless steel case and a copper alloy internal system to withstand demanding operational environments.
-
Bottom Connection: Features a standard lower mount (LM) connection for easy installation on horizontal pipelines or tanks.
-
Reliable Accuracy: Designed to meet ASME B40.100 standards, ensuring consistent performance for general industrial heating, ventilation, and air conditioning (HVAC) applications.
Description
Technical Specifications
| Feature | Specification |
| Nominal Size | 6″ (160 mm) |
| Connection Location | Bottom (Lower Mount) |
| Case Material | Stainless Steel (or depending on specific series) |
| Wetted Parts | Copper Alloy / Brass |
| Window | Clear Glass or Polycarbonate |
| Accuracy Class | ± 1.0% or 1.5% of span (Series dependent) |
| Pressure Ranges | From Vacuum up to 15,000 PSI |
Additional information
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150 BAR, 16 BAR, 2.5 BAR, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM – 760mmhg |
|---|
