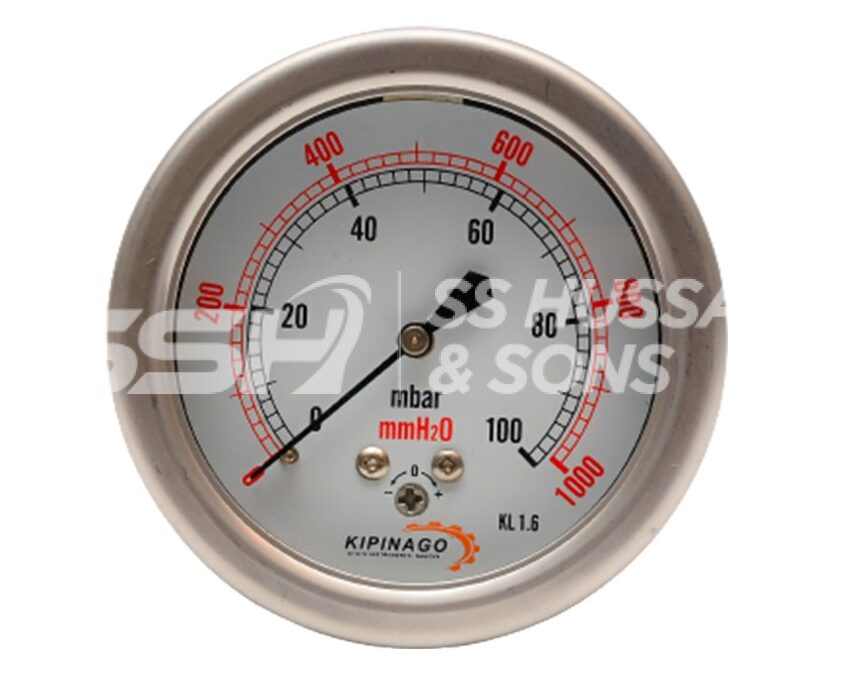

Capsule Low Pressure Gauge KPG – 5052
Price range: ₨ 4,500 through ₨ 8,500
Kipinago Capsule gauges for low pressure are suitable for the measurement of positive and negative overpressure between 0-2.5 mbar and 0-1000 mbar only for gaseous media that do not corrode brass/bronze or stainless steel.
Capsule Pressure Gauges are highly accurate Pressure Measuring Devices and conform to Accuracy Class, These are available in Brass Connection and come in dial sizes of 63 mm, 100mm and 150mm. Various pressure ranges are available from 0…1000mBar.
| DIAL SIZE | A | H | B | D |
| 4” | 110 | 86 | 49 | 98 |
Description
| Nominal Size: | 4″ |
| Connection: | BSP 1/2″ for 4″ |
| Scale Range, | According to EN 837-1/5 |
| Pressure ranges: | 0 to16/25/40/60/100/160/250/400/600/1000mbar |
| Vacuum range: | -600/-400/-250/-160/-100/-60/-40/-25/-16 to 0 mbar |
| Ambient: | -200C..+600C |
| Medium: | +600C maximum |
| Case and bayonet ring: | AISI 304 stainless steel |
| Window: | Instrument Glass |
| Wetted parts: | Copper capsule, brass connection |
| Movement: | Brass |
Additional information
| Size | 2.5 inch, 4 inch, 6 inch |
|---|---|
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150 BAR, 16 BAR, 2.5 BAR, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM – 760mmhg |
