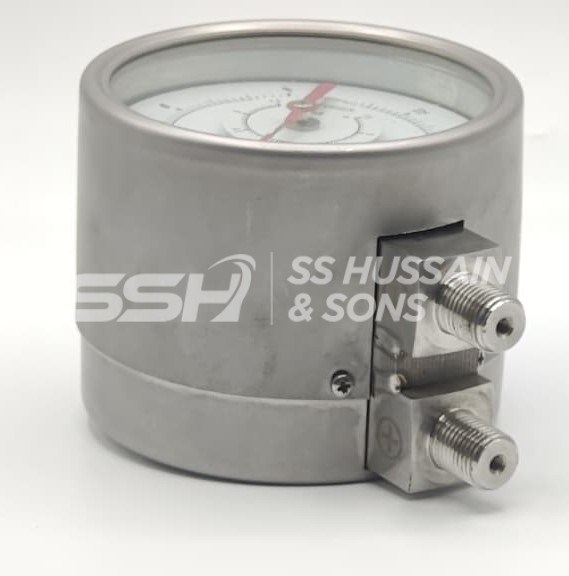

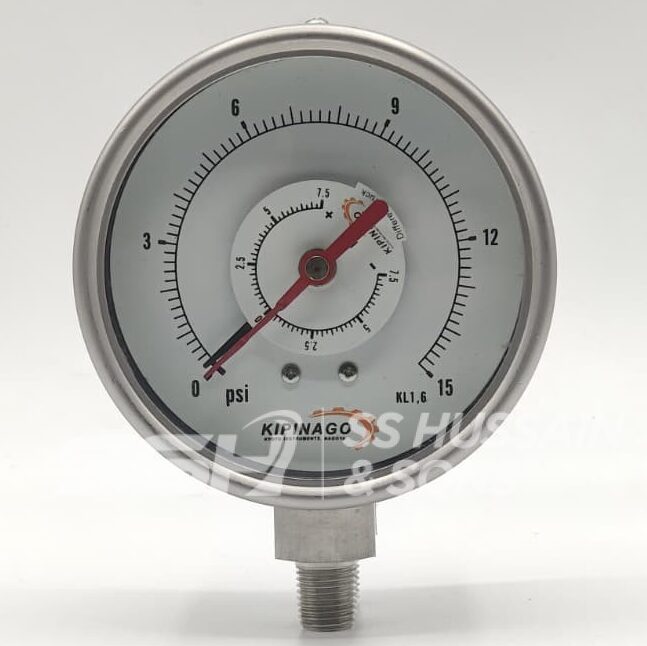

All Stainless Steel Differential Pressure Gauge KPG – 5352A
₨ 38,000
A stainless steel double differential pressure gauge is an instrument for monitoring the pressure difference between two points in a system. All-stainless steel construction providing durability for harsh industrial environments like chemical, petroleum, and pharmaceutical applications.

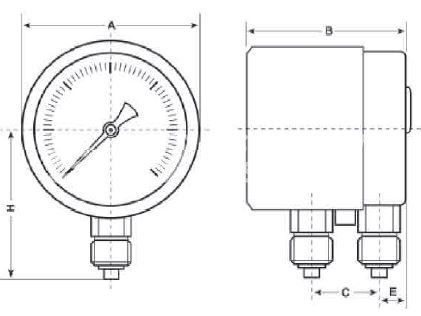

| DIAL SIZE | A | B | H | C | E |
| 4” | 102 | 80 | 95 | 32 | 16 |
Description
| Nominal Size: | 4” |
| Connection: | BSP 1/2” for 4” |
| Scale Range, | According to EN 837-1/5 |
| Pressure ranges: | 0 to 1.6/2.5/4/6/10/16/25/40/60 bar |
| Ambient: | -200C to 600C |
| Medium: | 1000C maximum |
| Case: | AISI 304 stainless steel case and friction ring |
| Window: | Instrument glass |
| Wetted parts: | AISI 316 stainless steel bourdon tube and connection |
| Movement: | AISI 304 stainless steel |
