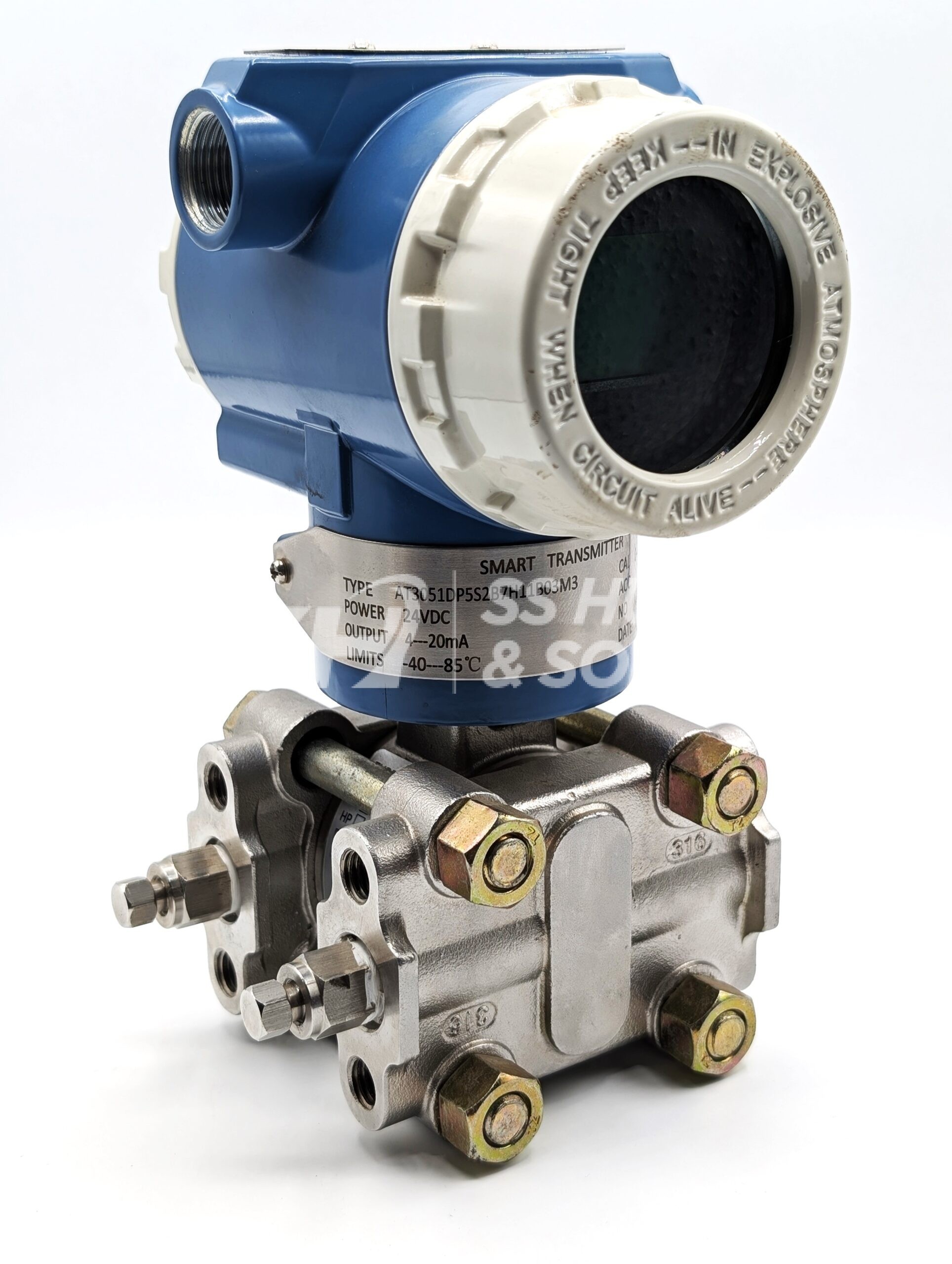

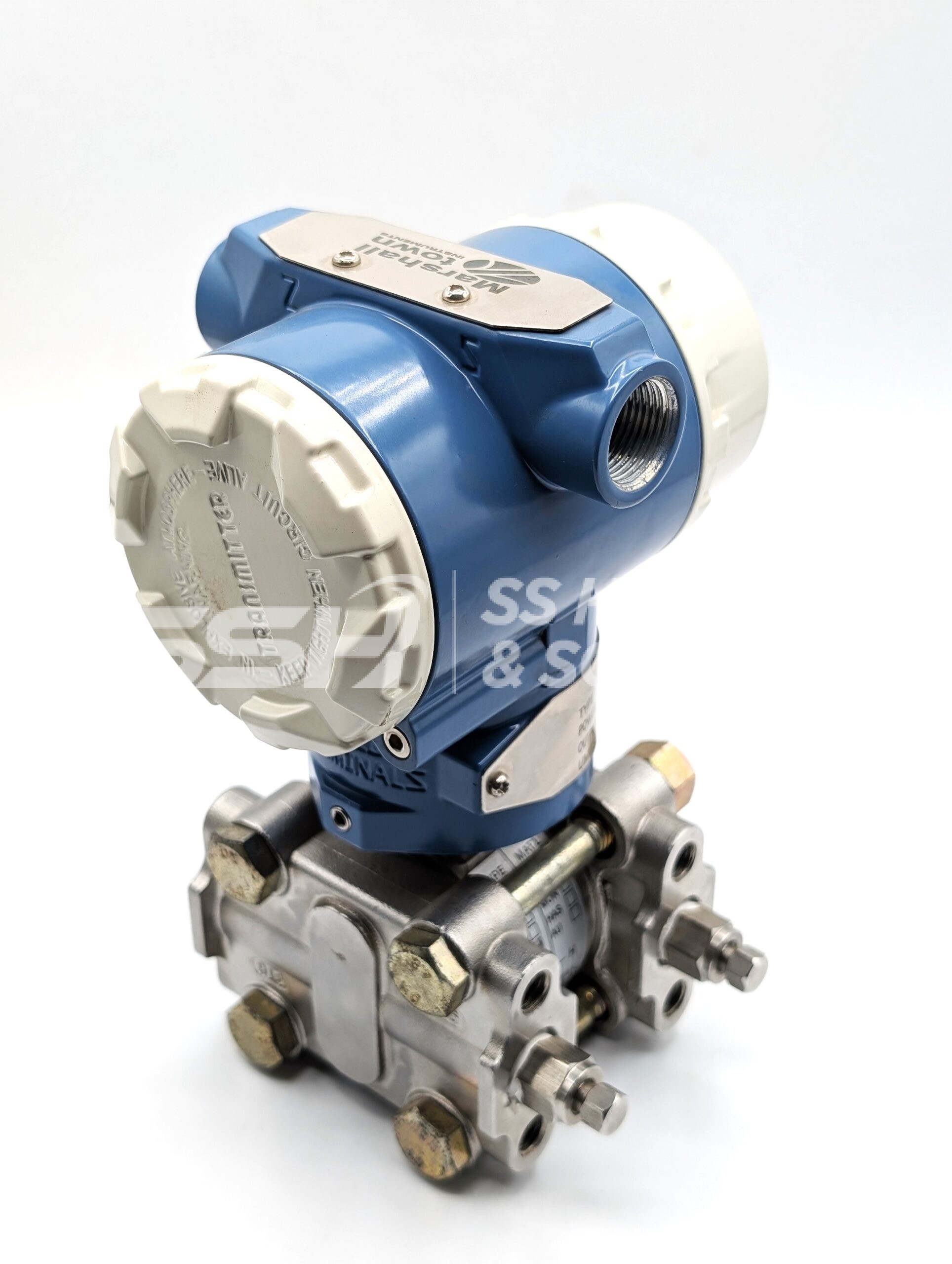

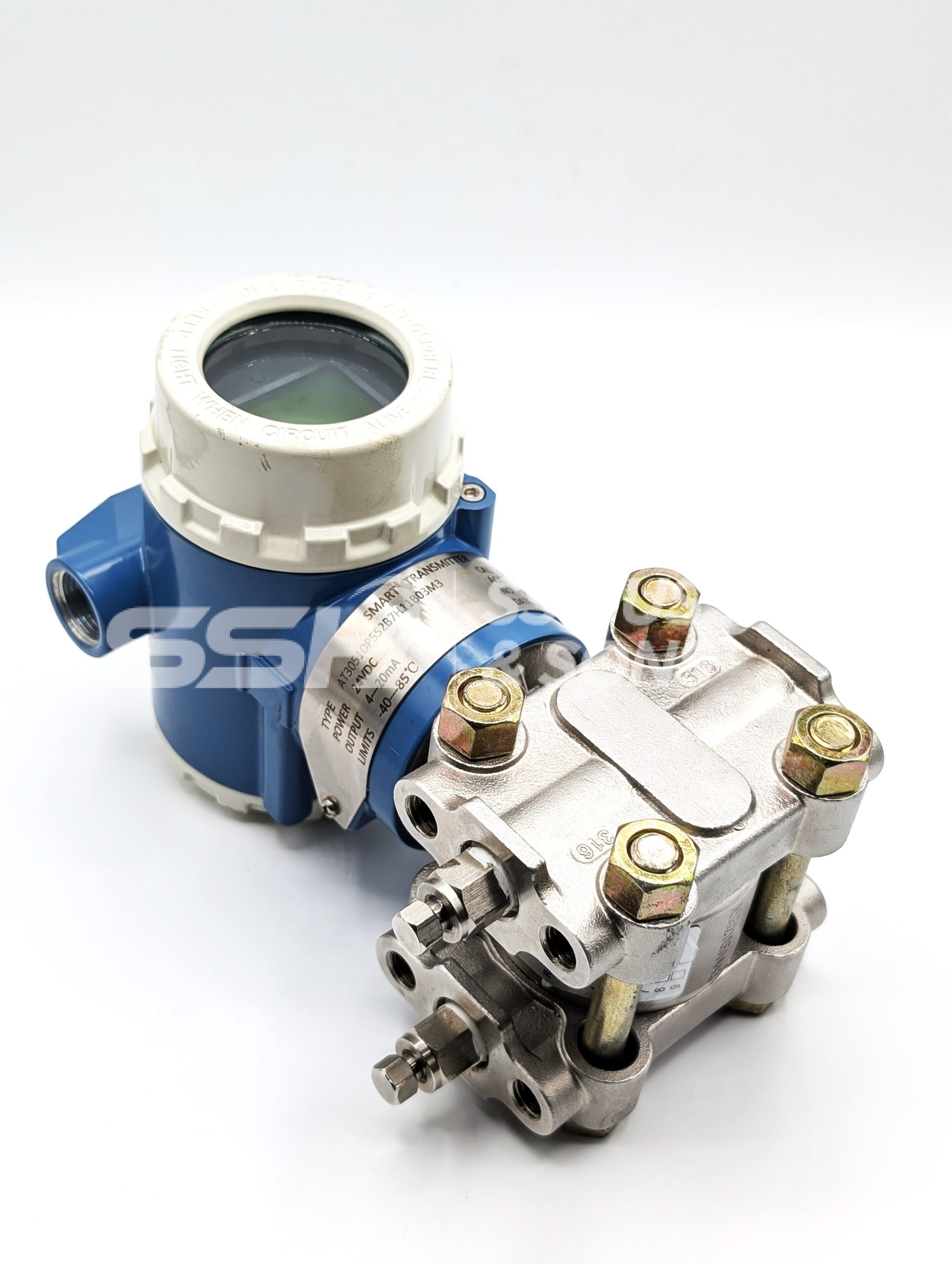

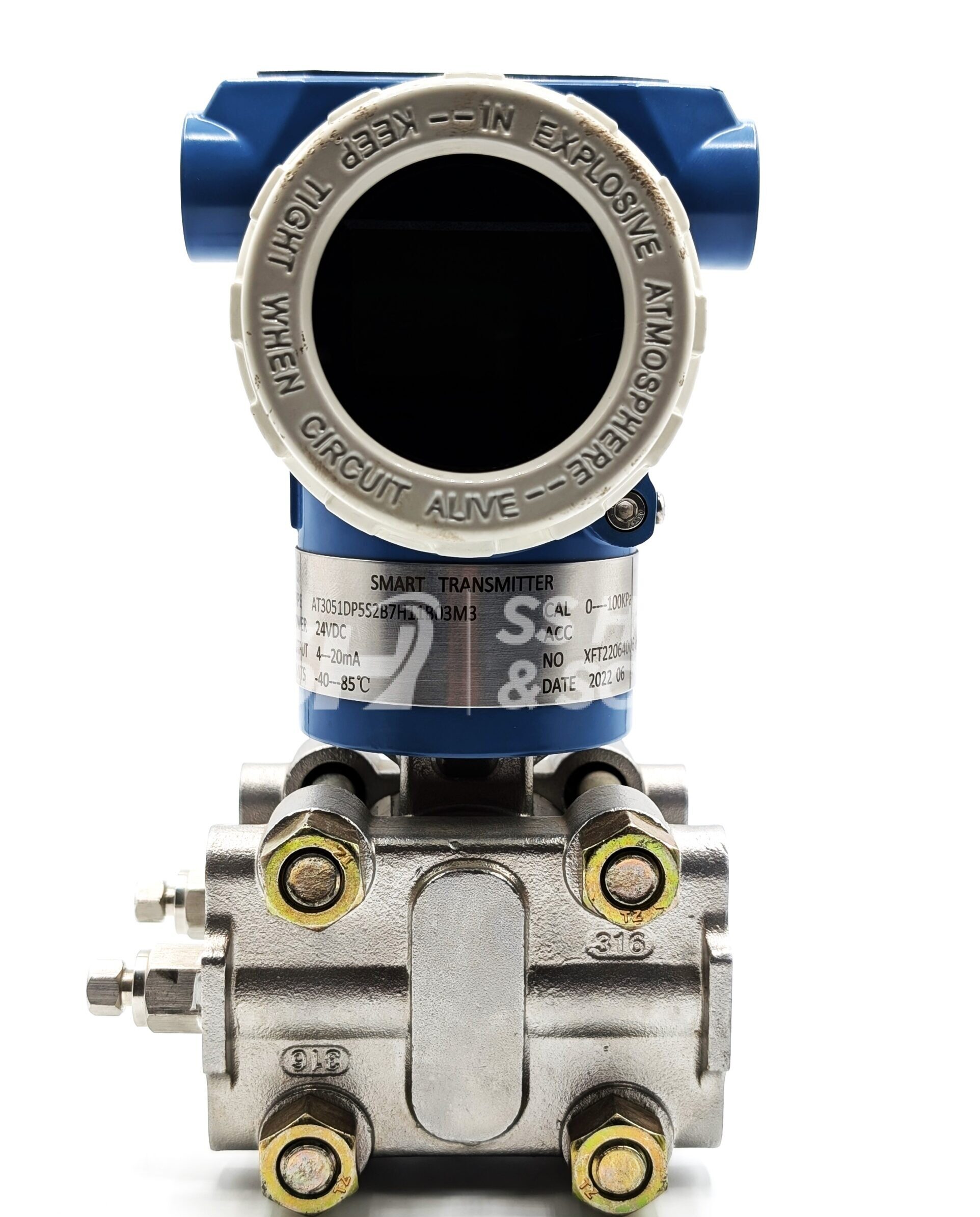

Differential Pressure Transmitter
₨0
Differential pressure measurement is an important requirement across industries. Differential pressure is the difference between any two measured pressures, and this measurement is performed using differential pressure transmitters. These Smart transmitters always make a comparison between the low side and high side pressures. They convert these pressure measurements into a 1-5Vdc output or 4-20 mA signal. These signals serve as input to a recorder, a controller, or any similar device.
Description
| Parameters | Detail | Application |
| Process Fluid: | Liquid Gas and Vapor | Water Treatment |
| Measuring Range: | 0 – 0.16 kPa ~ 0 – 1.0 kPa (Minimum) | HVAC |
| 0 – 4.0 MPa ~ 0 – 20.0 MPa (Maximum) | Food and pharmaceuticals | |
| Working Temperature: | -25-95’C | Paper |
| Max Pressure: | 40 Mpa | Chemical and Petrochemical |
| Flange/Adapter : | Stainless Steel 304 / Stainless Steel 316 | Offshore and Nuclear |
| Drains/Vents : | Stainless Steel 304 / Stainless 316 | Subsea |
| Display: | 5 Digits programmable & 0-100% Bargraph | Food and Beverages |
| Current Output: | 4- 20 mA 2 wires with Hart signal | |
| (Compatible) Load : Rohm=(Vdc-9)*50 |
