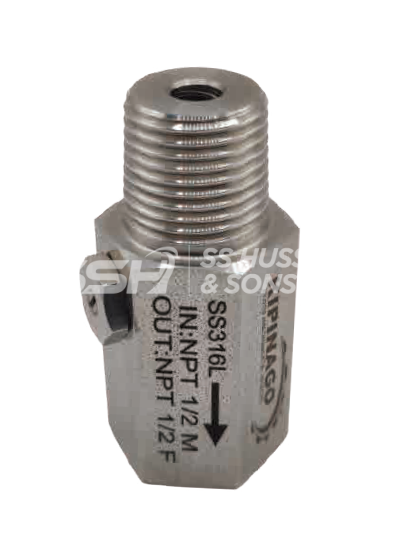

Snubber for Pressure Gauges -KPG-0052

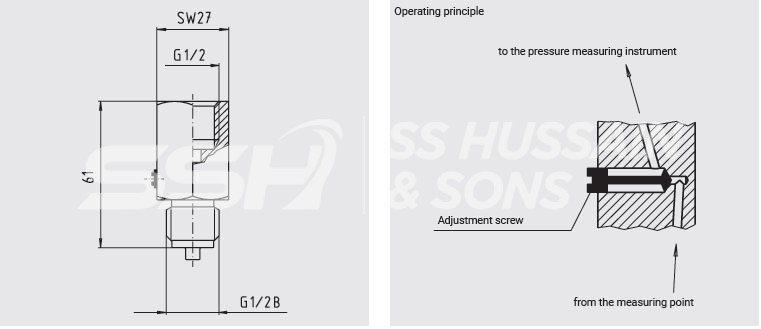

Snubbers are adjustable (modification of the flow
cross-section) and can thus be adapted individually to the
respective operating conditions. A readjustment during
operation, if required, is possible at any time.
The pulsations and pressure surges in the medium,
occurring e.g. in compressors, steam engines, hydraulic
presses, tensile testing machines etc., are largely
compensated by this device. Snubbers ensure a
considerably prolonged service life of the pressure
measuring instruments and improve the reading accuracy
of pressure gauges.
Application:
Snubbers protect pressure measuring instruments from
pressure surges and pulsations in the medium
Stainless steel version for aggressive media, even in
aggressive environments
Process industry: Machine building, general plant
construction, chemical industry, petrochemical industry,
power plants, mining, on-/offshore and environmental
technology.
Description
| Material: | Monel |
| Other process connection: | G 1/4, G 3/8 per EN 837-1/7.3, M20 x 1.5, 1/4
NPT, 1/2 NPT |
| Oil and grease free for oxygen: | max. 50 bar or +60 °C (for brass and 1.4571
materials only) |
| Inspection certificate
per DIN 50049 / EN 10204 3.1 |
