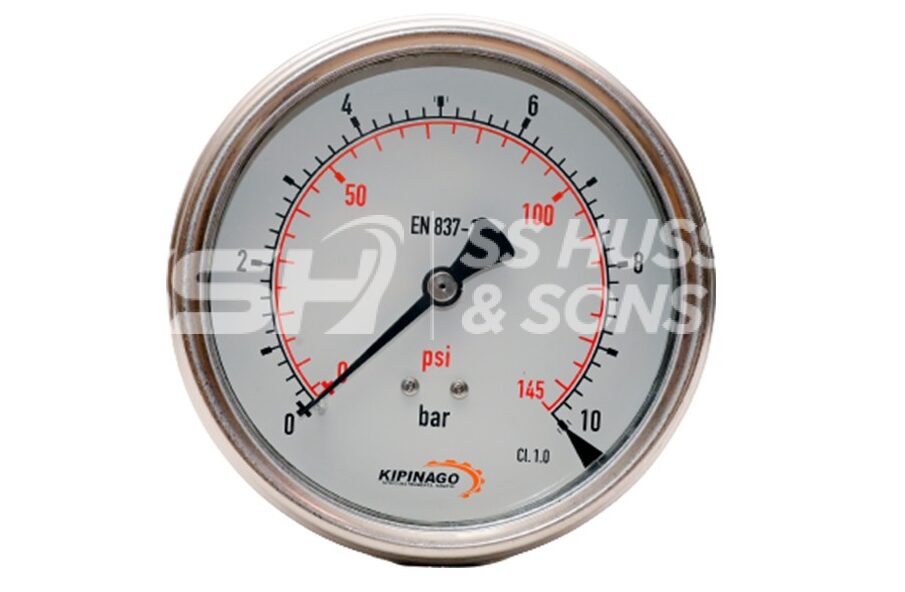

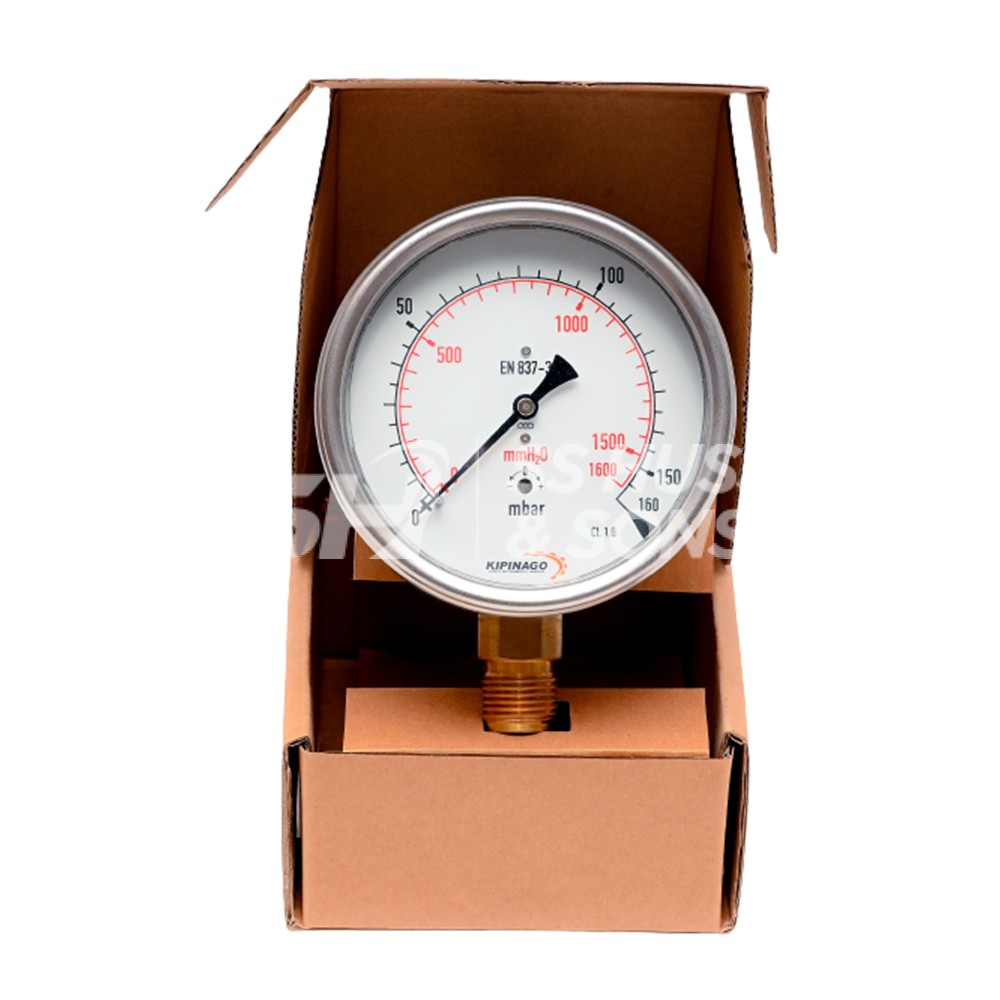

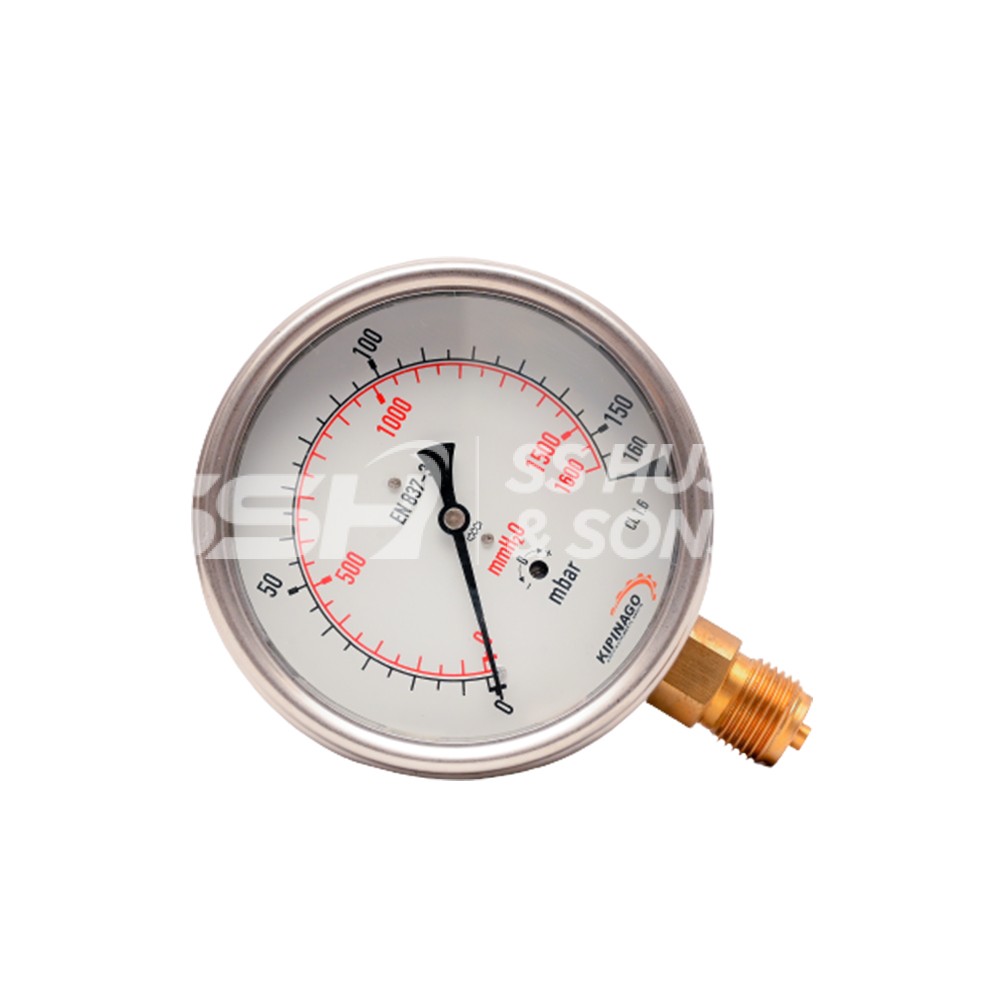

S.S BRASS High Accuracy Pressure Gauge-KPG-5152
Price range: ₨ 2,200 through ₨ 8,000
General service pressure gauge, feature low cost and high quality and is suitable for non-corrosive fluid Air, Oil, Gas or Water service are the most common applications
OPTIONS:-
- BSP,BSPT or other process connection thread.
- Restrictor ( RS )
- Special face design
- Glycerin 99.5% filled ( GF )
- Silicone oil filling ( SF )
- Refrigeration scale
- Ammonia NHB scale
- Blow-out rubber at back of 100mm and 150mm case
- Compension oil cap for range up to 16 bar
- Micro adjustable pointer
Description
|

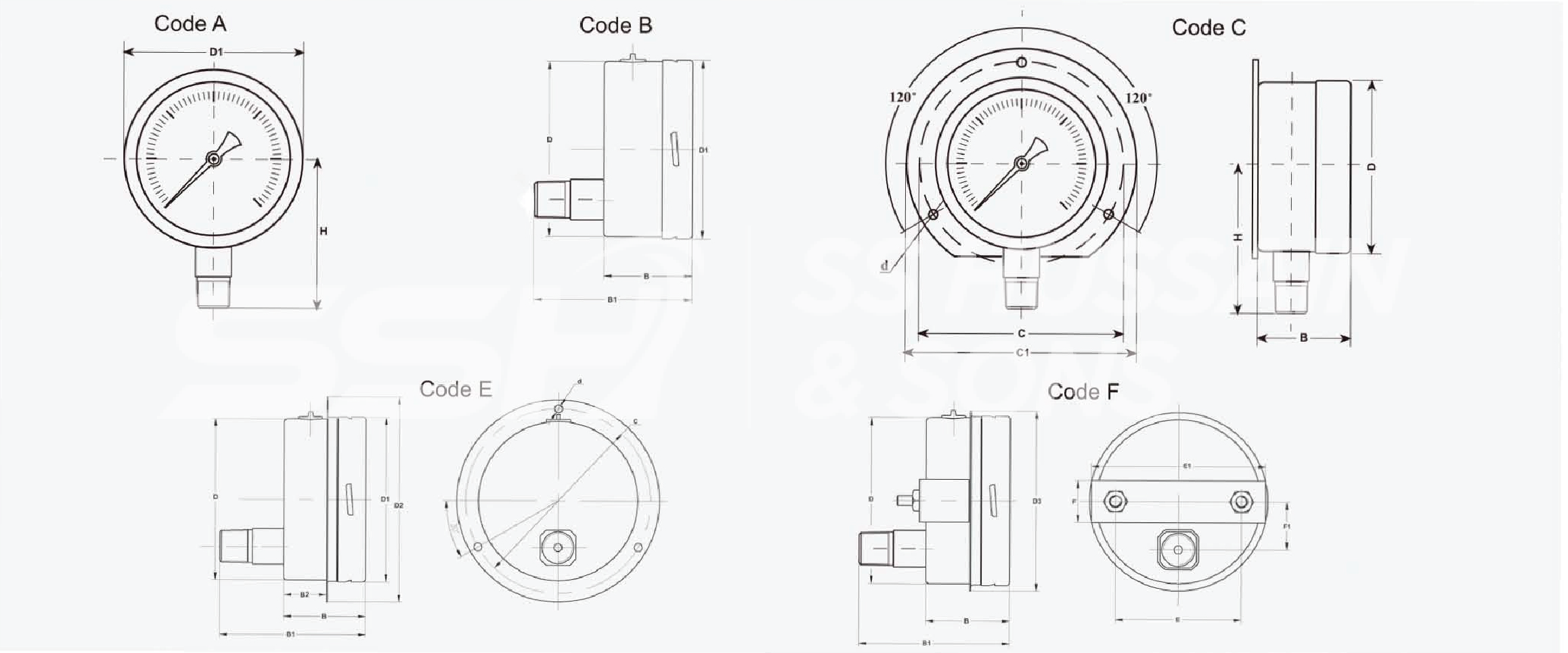

DIAL SIZE |
D | D1 | D2 | D3 | H | B | B1 | C | C1 | E | E1 | F | F1 | D |
|
2.5” |
62 | 64 | 85 | – | 54 | 34 | 57 | Ø77 | Ø85 | – | – | – | – | Ø3.5 |
|
4” |
99 |
101 | 128 | 107.5 | 83 | 50 | 83 | Ø118.5 | Ø128 | 76 | 76 | 25.5 | 29 |
Ø5 |
| 6” | 147 | 149 |
– |
– |
108 | 50 | 83 | Ø161 | Ø181 | – | – | – | – |
Ø5 |
Additional information
| Size | 2.5 inch, 4 inch, 6 inch |
|---|---|
| Ranges | 1 BAR, 10 BAR, 100 BAR, 1000 BAR, 150, 16 BAR, 2.5 BAR, 25 BAR, 250 BAR, 40 BAR, 400 BAR, 7 BAR, 70 BAR, 700 BAR, VACUM -760MMG |
